Plyant CQ Enclosures



Plyant CQ Redi-Ship program offers the most common and typical configuration in just one part number – ready to go!

By ordering a Redi-Ship rack, you get the advantage of:

• A fully-functional rack including all necessary component
• A pre-designed and ready-to-ship cabinet configuration
• One, easy to order part number
• Discounted price (compared to A-La-Cart pricing)
• All components are pre-installed and ship as one unit
• Quick turn-around – shipping within 2 to 5 business days!

Plyant CQ Redi-Ship racks are offered in two styles:

• Plyant CQ Redi-Ship EC – Typically ordered as a stand-alone, fully enclosed cabinet.
• Plyant CQ Redi-Ship GR – Typically ordered as one of many racks that will be ganged together in a row.

Plyant CQ Redi-Ship racks are available in Black, and are configured as follows:

	Plyant CQ Redi-Ship EC	Plyant CQ Redi-Ship GR
Base Unit (frame and rails)	√	√
M6 hardware pack of 50 screws and 50 cage nuts	√	√
Feet – Set of four (4) leveling feet	√	√
Top	Perforated Top	Perforated Top
Front Door	Mesh	Mesh
Rear Door	Mesh	Mesh
Side Panels	Solid Side Panels (Pair)	N/A

Plyant CQ Base Units

Plyant CQ Base Unit consists of:

• Cabinet open frame* (Plyant CQP: 24-inches wide; Plyant CQC: 30-inches wide)
• Two (2) pairs of 19-inch EIA vertical mounting rails w/square holes and U-Index™, pre-installed at 29" apart (front-to-back)
• M6 hardware pack of 50 screws and 50 cage nuts

* Leveling feet, or casters (or both) need to be purchased separately

Model	Rack Units	External Height	External Width	External Depth	Useable Depth	Maximum Rail Placement*	Extra Rear Depth**	Weight Capacity
Plyant CQP 44-48	44U	84 inches	24"	48 inches	46"	35"	11"	2000*** lbs.
Plyant CQP 44-42	44U	84 inches	24"	42 inches	40"	35"	5"	2000*** lbs.
Plyant CQP 41-42	41U	78 inches	24"	42 inches	40"	35"	5"	2000*** lbs.
Plyant CQP 24-42	24U	48 inches	24"	42 inches	40"	35"	5"	2000 lbs.
Plyant CQC 44-48	44U	84 inches	30"	48 inches	46"	35"	11"	2000*** lbs.
Plyant CQC 44-42	44U	84 inches	30"	42 inches	40"	35"	5"	2000*** lbs.
Plyant CQC 41-42	41U	78 inches	30"	42 inches	40"	35"	5"	2000*** lbs.

* Maximum Rail Placement: The maximum distance between the front and the back pair of rails.

** Extra Rear Depth: Dedicated for cable-management and PDU placement behind the back rails.

*** 1800 lbs. when the cabinet is fitted with casters.

Plyant CQ Floor Components

• Anti-Tip Legs are extremely useful in applications in which the cabinet is loaded with hardware installed on sliding (pull-out) brackets.  There’s a risk the cabinet may tip over when a number of these devices are pulled out simultaneously. Plyant Anti-Tip Legs can be extended out to the front of the cabinet, preventing it from tipping over.  When not needed – Plyant Anti-Tip Legs can be retracted to safely clear aisle space.  Plyant Anti-Tip Legs work in conjunction with Plyant Leveling Feet or Plyant Casters.
• Leveling Feet, Set of 4 – Extra tall leveling feet, designed to work in conjunction with Plyant Casters.  Use the casters to easily move the rack around. Once in place - adjust the height of the leveling feet to level the cabinet and steadily position it in place.
• Heavy-Duty Casters, Set of 4 (Non-Locking) – Designed to provide mobility to the rack while supporting the full specified weight load.

Plyant CQ Top Panels

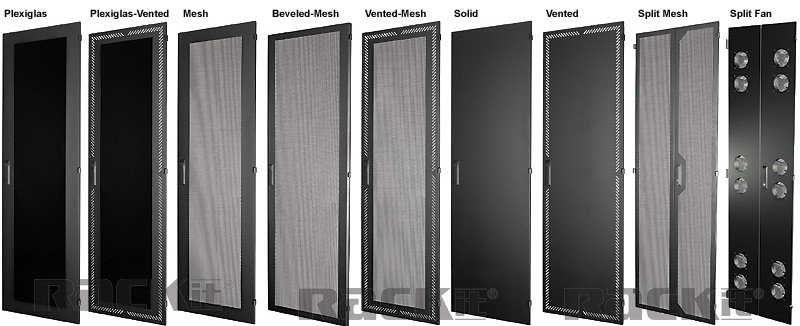

Plyant CQ Doors

• All Plyant doors are field-reversible (right or left hinged)
• All plyant doors are supported by 3 hinges, allowing them to swing open 180°.
• All Plyant doors can be mounted on cabinet's front or back
• Plyant Beveled-Mesh door can accommodate optional fan trays (up to 6), promoting horizontal ventilation, and an integrated 8-outlet PDU.
• Plyant Plexiglas-Vented door combines a vented perimeter with see-through capability.
• Plyant Vented door provides perimeter vents.
• Plyant Split-Mesh and Split-Fan doors feature a 3-point latch with 180° swing, reducing swing-clearance in the back to 11.75" (CLP models) or 14.25" (CLC models).

Plyant CQ Side Panels

Plyant CQ Side Panels are secured to the enclosure frame with a keyed lock at the top, and two (2) slam-latches at mid-height on both sides of the side-panel.

Plyant CQ Side Panels get flush-mounted onto the enclosure frame, allowing ganging cabinets together without the need to remove the side-panel.  Plyant CQx Side Panels are available in two (2) styles:

• Solid – Most common for most any application
• Louvered – For use when extra airflow is required
