Wallit Incline, 4U [SD]
1U stationary rack-mount brackets

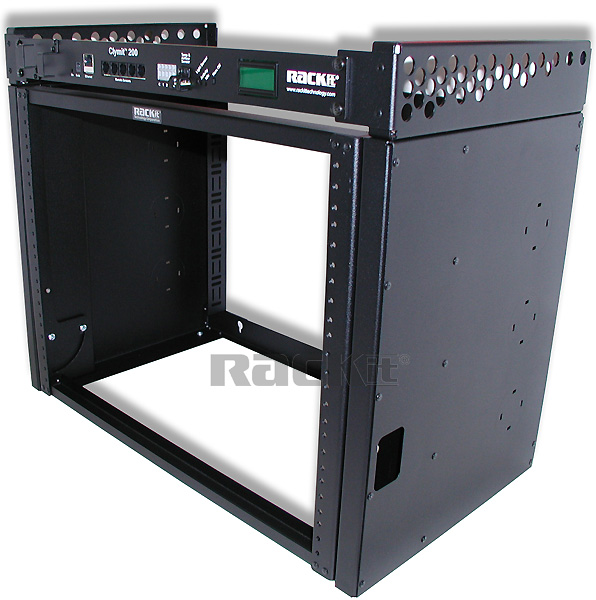

Wallit Incline, 8U with optional 1U stationary rack-mount brackets mounted on topIn some cases, when a stationary rack-mount appliance (such as a PDU) must be part of the installation, or when non-rack mountable devices need to be placed on a shelf installed within the rack configuration, Wallit Incline 1U brackets come in handy.

Designed with that in mind, Wallit Incline 1U stationary rack-mount brackets allow a these devices to be mounted and secured in a fixed position.

Wallit™ Incline stationary rack-mount brackets offer the ability to add an extra 1U space to the top or bottom of Wallit Incline wall mount rack.

Wallit™ Incline stationary rack-mount brackets provide 1U of rack space that will remain in place when the panel of Wallit Incline wall mount rack is tilted down for rear access. Installers no longer have to deal with these devices sliding off the rack.

Simply install the brackets to the top or bottom of Wallit Incline rack for an additional, stationary mounting of a 1U device. When mounting Wallit Incline 1U brackets on top of Wallit Incline rack, you could use the space to mount a 1U, 12" deep 19-12S Cantilever Shelf, creating a fixed and reliable location to support those peripherals.

Wallit™ Incline 1U brackets are easy to attach. Four (4) mounting screws are provided for securing the brackets to the top or bottom of Wallit Incline rack. Wallit Incline 1U brackets can also be attached to a covered Wallit Incline rack.


Enclose and protect

Wallit Incline, 4U with cover mounted on top and 1U brackets at the bottomTop off your Wallit™ Incline wall mount rack and protect your system with the convenient Wallit Incline Cover.

Wallit Incline's cover accessory turns Wallit Incline wall mount rack into a fully enclosed rack.

To create a larger racking solution, network installers will often mount multiple Wallit Incline wall mount racks above and/or below each other, taking advantage of Wallit Incline's modular design and creating a larger rack solution. In such case, Wallit Incline cover acts as a separator between each unit.

When mounted both on top and below that rack, Wallit™ Incline's cover accessory turns the rack into a fully-enclosed wall-mount rack, preventing dust and debris from settling on the equipment.

The cover's rear cut out also provides a convenient entrance point for cable routing.

When mounted on top of the rack, Wallit Incline cover can also double as a sturdy, durable surface for mounting non-rack mountable devices within the rack configuration.

Made of heavy duty steel construction, Wallit Incline cover easily fits on top and underneath Wallit Incline rack, and is assembles with just four (provided) screws.


Technical specifications

Wallit Incline, 8U with 1U brackets mounted on topRack-Mounting

  • 19" EIA 310-D compliant
  • Height: 7" (4U)
  • Depth: 12"
  • Weight capacity: 75 lbs.

Wallit Incline Rack-Mount Frame

  • Width: 19⅞"
  • Position: 2⅛" from the bottom

Cable Management

  • 2x laser knockouts, 2⅜" diameter on each side, 3" (on center) from rack's back
  • 1x rear lacing panel at the rack's back, on each side, with 12x lacing slits, ¾" long

Wallit Incline Physical Properties

  • Width: 22"
  • Height: 8½"
  • Depth: 12⅜"
  • Depth with open frame: 17"
  • Weight: 9.65 lbs.

Wall-Mount Key Holes

  • Four (4), one on each corner
  • 3" from the rack's sides
  • 1" from the rack's top/bottom

Wallit Incline Cover

  • Width: 21¾"
  • Depth: 12¼"
  • Cable-management cut-out: 12x2", 1½" from rack's back
  • Reinforcement flange: 5/16", facing outwards
  • Weight: 3.35 lbs.

Wallit Incline 1U Rack-Mount Brackets

  • 1U
  • 10-32 tapped rails
  • 19" EIA 310-D compliant
  • Height: 2⅝"
  • Depth: 12¼"
  • Weight: 2.2 lbs.
